| MOQ: | 10pcs |
| Precio: | Negociable |
| Standard Packaging: | 2500PCS/REEL |
| Delivery Period: | 2-3days |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 25000PCS/WEEK |

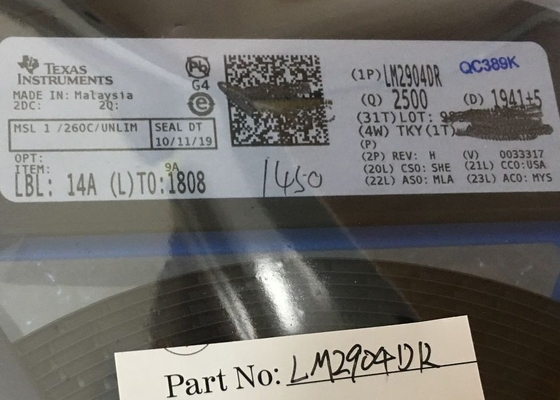

Texas Instruments LM2904DRG4 Operational Amplifier Op Amp Dual General Purpose Op Amp
Operational Amplifier
Controlled Baseline One Assembly/Test Site, One FabricationSite Extended Temperature Performance of
−40°C to 125°C
Enhanced Diminishing Manufacturing
Sources (DMS) Support
Enhanced Product-Change Notification
Qualification Pedigree† ESD Protection Exceeds 500 V Per
MIL-STD-883, Method 3015; Exceeds 200 V
Using Machine Model (C = 200 pF, R = 0)
Low Supply-Current Drain Independent of
Supply Voltage . . . 0.7 mA Typ
† Component qualification in accordance with JEDEC and industry
standards to ensure reliable operation over an extended
temperature range. This includes, but is not limited to, Highly
Accelerated Stress Test (HAST) or biased 85/85, temperature
cycle, autoclave or unbiased HAST, electromigration, bond
intermetallic life, and mold compound life. Such qualification
testing should not be viewed as justifying use of this component
beyond specified performance and environmental limits.
Common-Mode Input Voltage Range
Includes Ground, Allowing Direct Sensing
Near Ground
Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage:
− Non-V Devices . . . ±26 V
− V-Suffix Devices... ±32 V
Low Input Bias and Offset Parameters:
− Input Offset Voltage . . . 3 mV Typ
− Input Offset Current . . . 2 nA Typ
− Input Bias Current . . . 20 nA Typ
Open-Loop Differential Voltage
Amplification . . . 100 V/mV Typ
Internal Frequency Compensation
description/ordering information
This device consists of two independent, high-gain, frequency-compensated operational amplifiers designed
to operate from a single supply over a wide range of voltages. Operation from split supplies is possible as long
as the difference between the two supplies is 3 V to 26 V (3 V to 32 V for V-suffix devices), and VCC is at least
1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the
magnitude of the supply voltage.
Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational
amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example,
these devices can be operated directly from the standard 5-V supply used in digital systems and easily provide
the required interface electronics without additional ±5-V supplies.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order!
Q3. Do you test or check all your goods before delivery?
A: Yes, we have 100% test and check all goods before delivery.
Q4: How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.
Q5: How to contact us?
A: Send your inquiry details in the below,Click "Send"Now!!!
Shenzhen Hongxinwei Technology Co., Ltd
To adopt new technology,to produce products of quality,to offer high-class service.
Improve the management system continuously to meet customer requirement for high-quality products and services.
Why choose us?
|
|
